HIDE 12" Skimmer Lid & Access Cover Kit
HIDE 12" Skimmer Lid & Access Cover Kit

HIDE 12" Skimmer Lid & Access Cover Kit

HIDE
SKU:
HSL12
$300.00

Replace a visible pool-skimmer lid with a flush 12-inch 316L stainless steel HIDE cover finished to match the surrounding pool deck.

  • Conceals the pool-skimmer opening
  • Matches the surrounding deck finish
  • Six depths for common surface materials
  • Removable access with the HIDE Safety Key
Choose your inlay depth Select the depth that matches your finished surface and installation requirements. Which inlay depth do I need?
Current Stock:
Adding to cart… The item has been added
Confirm before ordering

Is this the right HIDE kit for your project?

Verify the application, opening and finished surface before selecting a depth.

What’s included

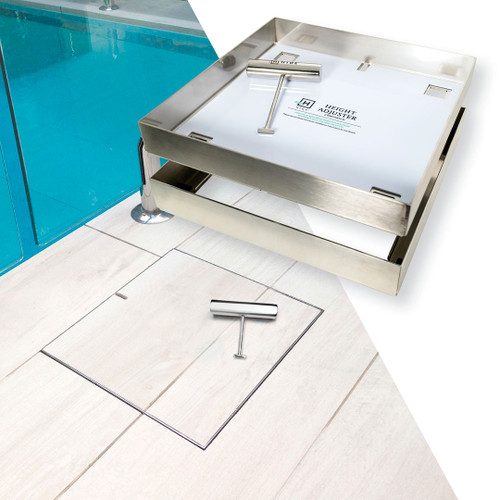

Representative HIDE cover kit with stainless-steel frame and tray, safety key, height adjuster, adhesive and documentation
Representative HIDE kit shown. Exact components vary by cover model and selected depth.
  • 316L stainless steel inlay lid
  • 316L stainless steel edge-protector frame
  • HIDE Safety Key access tool(s)
  • HIDE adhesive, 2 mm height adjuster and documentation

Surface inlay and skimmer box are not included. Safety-key quantity and any concrete-conversion components vary by selected depth; verify the child SKU.

Verify these product details

  1. 1
    ApplicationPool skimmer boxes and exterior access or inspection points requiring a removable, inlay-ready cover.
  2. 2
    Required openingClear frame access opening: approximately 10 inches square.
  3. 3
    Overall outside size12 inches square overall frame; inlay lid is approximately 11 3/4 inches square.
  4. 4
    Load and use ratingRecommended for pedestrian-only traffic areas; not rated for vehicle traffic. Confirm project-specific load and code requirements.

Confirm skimmer-box clearance and finished inlay thickness before ordering. Turn the pump off before opening, remove the lid completely and store the Safety Key away from children.

Check the depth chart Ask SPI Supply
How HIDE works

A concealed cover in three steps

The stainless-steel system supports your selected surface material while preserving access to the point below.

Finished HIDE inlay cover being lifted with the removable safety key
The removable safety key provides access while allowing the installed cover to remain visually concealed when closed.
  1. 1

    Set the frame

    Install and level the edge-protector frame within the prepared surrounding surface.

  2. 2

    Fit the inlay

    Cut and secure matching tile, stone, paver, decking, turf, or another suitable finish inside the tray.

  3. 3

    Blend and access

    The finished lid sits flush with its surroundings and lifts with the supplied HIDE key when access is needed.

Depth selection chart

Match your finished surface to the correct depth

Measure the finished material, including adhesive or setting bed, then use the chart to select the appropriate inlay depth.

HIDE inlay depth recommendations by surface material and finished thickness
Surface material Material thickness Required depth
Tile / Turf 3/8″ to 1/2″ (1 cm) 0.4″ depth
Porcelain 5/8″ to 7/8″ (2 cm) 0.8″ depth
Travertine Paver 1″ to 1 1/4″ (3 cm) 1.2″ depth
Stone / Concrete 1 3/8″ to 1 5/8″ (4 cm) 1.6″ depth*
Brick / Stone / Concrete 1 3/4″ to 2″ (5 cm) 2.0″ depth*
Brick / Thicker Stone 2 1/4″ to 2 1/2″ (6 cm) 2.5″ depth*

* Deeper kits may include concrete-conversion components. Available depths and components vary by cover type and size; choose only from the options shown for this product.

Between sizes or planning a concrete installation? We can help verify the cover size, finished material thickness and complete kit before you order.
Ask SPI Supply
Project inspiration

Designed to disappear into the finished surface

Explore installed applications, finish ideas, technical drawings and kit details from this product’s gallery.

Finished HIDE cover aligned with surrounding stone paving
Finished installation
Before and after comparison replacing a visible drain grate with a stone-inlay HIDE cover
Stone-finish transformation
Before and after comparison replacing a green drain grate with a paver-inlay HIDE cover
Paver-finish transformation
Installation and support

Plan the installation before you order

Confirm the opening, finished material thickness and installation requirements with your contractor. Use the documents below for product-specific planning.

Manufacturer video

Watch the HIDE installation overview

Review the manufacturer’s installation process before selecting a kit or beginning site preparation. Always follow the instructions supplied for the exact product and depth selected.

Watch directly on Vimeo
PDFContractor installation adviceGeneral preparation and installation guidance for qualified contractors. PDFTechnical specificationsDimensions, opening requirements and technical product details. PDFWarranty and care guideSafe use, cleaning, maintenance and warranty information.
Frequently asked questions

Questions before installation

Still unsure? SPI Supply can help verify the kit before you order.

Ask a product question
How do I choose the correct inlay depth?

Measure the total finished thickness of the material that will sit inside the cover, including the adhesive or setting layer. Match that measurement to the depth chart above, then choose from the options available on this product.

Can a HIDE cover be installed in an existing deck?

Many HIDE covers can be used for retrofit projects. The opening dimensions, clearance, finished surface thickness and site conditions must be checked before ordering or altering the deck.

Should a professional install the cover?

Professional installation is strongly recommended. Have a licensed, suitably experienced contractor read and follow the applicable installation instructions before work begins; incorrect installation can affect warranty coverage.

What is included with a HIDE kit?

Kit contents vary by cover model and selected depth. Review the product-specific “What’s included” list above, the product description and the applicable technical documents before ordering.

How should the cover be cleaned and maintained?

Remove accumulated debris and clean the exposed surface appropriately for the surrounding finish. Do not allow acid or chemical-wash solutions to contact the stainless-steel components, and always store the safety key securely away from children.

Product details & specifications

HIDE HSL12 Skimmer Lid & Access Cover Kit – 12" Square, Inlay-Ready Stainless Cover

SKU: HSL12 (parent)  |  MPN: HSL12 (parent)  |  Brand: HIDE

Quick Facts: 12" × 12" cover | 316 stainless construction | Inlay depths: 0.4"–2.5" | Single/Double-key models | Pedestrian-rated
  • Discreet, flush-finish skimmer access—accepts your deck surface inlay (tile, stone, paver, turf, or similar).
  • 316 marine-grade stainless components designed for outdoor pool/landscape environments.
  • Choose the inlay depth that matches your surface thickness for a seamless, trip-safe result.
  • Includes professional install accessories and HIDE Safety Key for easy access after install.
  • Recommended for pedestrian traffic areas (pool decks, patios, pathways).

Technical Specifications

Key Specs
Cover Size 12" × 12" (square)
Material 316 / 316L marine-grade stainless steel components
Available Inlay Depths (variants) 0.4", 0.8", 1.2" (single-key) • 1.6", 2.0", 2.5" (double-key)
Applications Pool skimmer lids and exterior access/inspection points
Traffic Rating Pedestrian

Overview

The HIDE HSL12 is a 12" square, inlay-ready skimmer lid system that blends your pool deck surface into a flush, near-invisible access cover. Each variant matches a specific surface thickness and uses either a single-key (shallow depths) or double-key (thicker inlay) design for secure lifting. Ideal for pool surrounds and other exterior access points where a clean, premium finish is desired.

What's Included

  • Inlay Cover (tray) – accepts your deck material (tile/stone/paver/turf/concrete as applicable)
  • Edge Protector frame
  • HIDE Safety Key (single or double, per depth)
  • Height Adjuster (5 mm / 3⁄16")
  • HIDE Adhesive tube (for assembling the inlay cover)
  • Homeowner Info Pack (manual)

Compatibility & Replacements

Compatible with most deck finishes—tile, stone, pavers, turf, and (with specific kits) concrete wet-pour. Select the variant depth that matches your installed surface. For concrete applications, choose thicker kits (typically 1.6", 2.0", or 2.5") that include the conversion needed for wet-pour installs.

Installation & Notes

  • Professional installation recommended; follow HIDE’s contractor instructions.
  • Never leave the Safety Key in the lid; pass it to the homeowner after install.
  • Do not expose stainless components to acid/chemical washes (will stain/void coverage).
  • Bonding/earthing must follow local codes; attachment points are provided if required.

Installation Instructions

Technical Specifications

Warranty & Care Guide

Shipping & Returns

Ships from the USA. 30-day returns; customer pays return shipping. Please see our Shipping & Returns policy for details.

Additional Information

HIDE Summary:
Replace a visible pool-skimmer lid with a flush 12-inch 316L stainless steel HIDE cover finished to match the surrounding pool deck.
HIDE Fact 1:
Conceals the pool-skimmer opening
HIDE Fact 2:
Matches the surrounding deck finish
HIDE Fact 3:
Six depths for common surface materials
HIDE Fact 4:
Removable access with the HIDE Safety Key
HIDE Application:
Pool skimmer boxes and exterior access or inspection points requiring a removable, inlay-ready cover.
HIDE Opening:
Clear frame access opening: approximately 10 inches square.
HIDE Outside Size:
12 inches square overall frame; inlay lid is approximately 11 3/4 inches square.
HIDE Load Rating:
Recommended for pedestrian-only traffic areas; not rated for vehicle traffic. Confirm project-specific load and code requirements.
HIDE Included 1:
316L stainless steel inlay lid
HIDE Included 2:
316L stainless steel edge-protector frame
HIDE Included 3:
HIDE Safety Key access tool(s)
HIDE Included 4:
HIDE adhesive, 2 mm height adjuster and documentation
HIDE Included Note:
Surface inlay and skimmer box are not included. Safety-key quantity and any concrete-conversion components vary by selected depth; verify the child SKU.
HIDE Product Note:
Confirm skimmer-box clearance and finished inlay thickness before ordering. Turn the pump off before opening, remove the lid completely and store the Safety Key away from children.
HIDE Vimeo Video:
373802978
HIDE Contractor PDF:
https://spi.supply/content/hide/HIDE-Contractor-Installation-Advice.pdf
HIDE Technical PDF:
https://spi.supply/content/hide/HAC-TEC-2025-USA-v2.pdf
HIDE Warranty PDF:
https://spi.supply/content/hide/Homeowners-Manual-Warranty.pdf
