HIDE 10" Access Cover Kit
HIDE 10" Access Cover Kit

HIDE 10" Access Cover Kit

HIDE
SKU:
HAC10
$260.00

Keep a larger exterior service point accessible without disrupting the finished surface using this flush 10-inch 316L stainless steel HIDE inlay cover.

  • Preserves convenient service access
  • Blends into tile, stone, pavers or turf
  • Six depths for common surface materials
  • Opens with the supplied HIDE Safety Key
Choose your inlay depth Select the depth that matches your finished surface and installation requirements. Which inlay depth do I need?
Current Stock:
Adding to cart… The item has been added
Confirm before ordering

Is this the right HIDE kit for your project?

Verify the application, opening and finished surface before selecting a depth.

What’s included

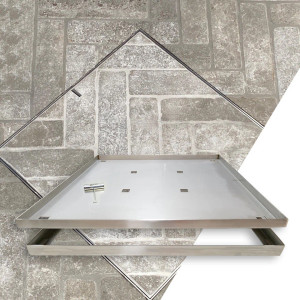

Representative HIDE cover kit with stainless-steel frame and tray, safety key, height adjuster, adhesive and documentation
Representative HIDE kit shown. Exact components vary by cover model and selected depth.
  • 316L stainless steel inlay lid
  • 316L stainless steel edge-protector frame
  • HIDE Safety Key access tool(s)
  • HIDE adhesive, 2 mm height adjuster and documentation

Surface inlay is not included. Safety-key quantity and any concrete-conversion components vary by selected depth; verify the child SKU before fulfillment.

Verify these product details

  1. 1
    ApplicationExterior access and inspection points such as valves, cleanouts, junctions and landscape services; not designed as a drain.
  2. 2
    Required openingClear frame access opening: approximately 8 1/2 inches square.
  3. 3
    Overall outside size10 inches square overall frame.
  4. 4
    Load and use ratingRecommended for pedestrian-only traffic areas; not rated for vehicle traffic. Confirm project-specific load and code requirements.

Confirm the clear opening, frame support and total finished inlay thickness before ordering. Professional installation is recommended. Do not use this access cover as a drain.

Check the depth chart Ask SPI Supply
How HIDE works

A concealed cover in three steps

The stainless-steel system supports your selected surface material while preserving access to the point below.

Finished HIDE inlay cover being lifted with the removable safety key
The removable safety key provides access while allowing the installed cover to remain visually concealed when closed.
  1. 1

    Set the frame

    Install and level the edge-protector frame within the prepared surrounding surface.

  2. 2

    Fit the inlay

    Cut and secure matching tile, stone, paver, decking, turf, or another suitable finish inside the tray.

  3. 3

    Blend and access

    The finished lid sits flush with its surroundings and lifts with the supplied HIDE key when access is needed.

Depth selection chart

Match your finished surface to the correct depth

Measure the finished material, including adhesive or setting bed, then use the chart to select the appropriate inlay depth.

HIDE inlay depth recommendations by surface material and finished thickness
Surface material Material thickness Required depth
Tile / Turf 3/8″ to 1/2″ (1 cm) 0.4″ depth
Porcelain 5/8″ to 7/8″ (2 cm) 0.8″ depth
Travertine Paver 1″ to 1 1/4″ (3 cm) 1.2″ depth
Stone / Concrete 1 3/8″ to 1 5/8″ (4 cm) 1.6″ depth*
Brick / Stone / Concrete 1 3/4″ to 2″ (5 cm) 2.0″ depth*
Brick / Thicker Stone 2 1/4″ to 2 1/2″ (6 cm) 2.5″ depth*

* Deeper kits may include concrete-conversion components. Available depths and components vary by cover type and size; choose only from the options shown for this product.

Between sizes or planning a concrete installation? We can help verify the cover size, finished material thickness and complete kit before you order.
Ask SPI Supply
Project inspiration

Designed to disappear into the finished surface

Explore installed applications, finish ideas, technical drawings and kit details from this product’s gallery.

Finished HIDE cover aligned with surrounding stone paving
Finished installation
Before and after comparison replacing a visible drain grate with a stone-inlay HIDE cover
Stone-finish transformation
Before and after comparison replacing a green drain grate with a paver-inlay HIDE cover
Paver-finish transformation
Installation and support

Plan the installation before you order

Confirm the opening, finished material thickness and installation requirements with your contractor. Use the documents below for product-specific planning.

Manufacturer video

Watch the HIDE installation overview

Review the manufacturer’s installation process before selecting a kit or beginning site preparation. Always follow the instructions supplied for the exact product and depth selected.

Watch directly on Vimeo
PDFContractor installation adviceGeneral preparation and installation guidance for qualified contractors. PDFTechnical specificationsDimensions, opening requirements and technical product details. PDFWarranty and care guideSafe use, cleaning, maintenance and warranty information.
Frequently asked questions

Questions before installation

Still unsure? SPI Supply can help verify the kit before you order.

Ask a product question
How do I choose the correct inlay depth?

Measure the total finished thickness of the material that will sit inside the cover, including the adhesive or setting layer. Match that measurement to the depth chart above, then choose from the options available on this product.

Can a HIDE cover be installed in an existing deck?

Many HIDE covers can be used for retrofit projects. The opening dimensions, clearance, finished surface thickness and site conditions must be checked before ordering or altering the deck.

Should a professional install the cover?

Professional installation is strongly recommended. Have a licensed, suitably experienced contractor read and follow the applicable installation instructions before work begins; incorrect installation can affect warranty coverage.

What is included with a HIDE kit?

Kit contents vary by cover model and selected depth. Review the product-specific “What’s included” list above, the product description and the applicable technical documents before ordering.

How should the cover be cleaned and maintained?

Remove accumulated debris and clean the exposed surface appropriately for the surrounding finish. Do not allow acid or chemical-wash solutions to contact the stainless-steel components, and always store the safety key securely away from children.

Product details & specifications

HIDE HAC10 Access Cover Kit – 10" Square, Inlay-Ready Cover

SKU: HAC10 (parent)  |  MPN: HAC10 (parent)  |  Brand: HIDE

Quick Facts: 10" × 10" cover | 316 stainless steel frame | Inlay depths: 0.4", 0.8", 1.2", 1.6", 2.0", 2.5" | Concrete-compatible at deeper variants | Select your own inlay
  • Seamlessly blends with your deck finish by allowing your own tile, stone, paver, turf, or concrete inlay.
  • Built with 316 / 316L marine-grade stainless steel for corrosion resistance and long outdoor durability.
  • Range of depths so you can match inlay thickness; deeper versions include dual key pulls for easier access.
  • Includes safety key tool, height adjuster, and edge frame for a flush, finished look.
  • Pedestrian traffic rated; provides flush finish with minimal visible profile.

Technical Specifications

Key Specs
Cover Size (Outside Frame) 10" × 10" square
Opening (Under-Frame) ~9" × 9" square underside (varies slightly with depth).
Material 316 / 316L stainless steel components
Available Depth Variants 0.4", 0.8", 1.2", 1.6", 2.0", 2.5"
Concrete Suitability Yes—depths 1.6", 2.0", 2.5" include concrete conversion option
Warranty 10 years with required maintenance

Overview

The HIDE HAC10 Access Cover Kit is a 10-inch square inlay-ready cover designed to conceal deck or access point lids with your chosen material. With marine-grade stainless steel frame, multiple depth options, and concrete-conversion kits for deeper applications, it allows you to achieve a flush, seamless finish. Perfect for outdoor access panels, meter boxes, and places where aesthetics and safety both matter.

What’s Included

  • Stainless steel inlay lid tray (you supply the inlay material)
  • Edge protection frame
  • Safety key tool
  • Height adjuster (when needed) to raise lid flush
  • Concrete conversion kit for applicable deeper depth variants
  • Instructions and warranty paperwork

Compatibility & Replacements

Works with most deck finishes: tile, stone, pavers, turf, and concrete conversions. Pick the variant depth that best matches the inlay thickness of your installation. Replaces older HIDE access cover kits of 10" square with similar finishing requirements.

Installation & Notes

  • Ensure surface material (inlay) is cut to fit lid tray dimensions closely for proper fit.
  • For concrete or thick inlay, use variants 1.6", 2.0", or 2.5" depth which include conversion accessories.
  • Clean stainless steel properly; avoid acid or harsh chemicals to maintain finish.
  • Install with safety key removed and handed to homeowner for controlled access.

Installation Instructions

Technical Specifications

Warranty & Care Guide

Shipping & Returns

Ships from the USA. 30-day returns; customer pays return shipping. Please see our Shipping & Returns policy for details.

Additional Information

HIDE Summary:
Keep a larger exterior service point accessible without disrupting the finished surface using this flush 10-inch 316L stainless steel HIDE inlay cover.
HIDE Fact 1:
Preserves convenient service access
HIDE Fact 2:
Blends into tile, stone, pavers or turf
HIDE Fact 3:
Six depths for common surface materials
HIDE Fact 4:
Opens with the supplied HIDE Safety Key
HIDE Application:
Exterior access and inspection points such as valves, cleanouts, junctions and landscape services; not designed as a drain.
HIDE Opening:
Clear frame access opening: approximately 8 1/2 inches square.
HIDE Outside Size:
10 inches square overall frame.
HIDE Load Rating:
Recommended for pedestrian-only traffic areas; not rated for vehicle traffic. Confirm project-specific load and code requirements.
HIDE Included 1:
316L stainless steel inlay lid
HIDE Included 2:
316L stainless steel edge-protector frame
HIDE Included 3:
HIDE Safety Key access tool(s)
HIDE Included 4:
HIDE adhesive, 2 mm height adjuster and documentation
HIDE Included Note:
Surface inlay is not included. Safety-key quantity and any concrete-conversion components vary by selected depth; verify the child SKU before fulfillment.
HIDE Product Note:
Confirm the clear opening, frame support and total finished inlay thickness before ordering. Professional installation is recommended. Do not use this access cover as a drain.
HIDE Vimeo Video:
373802978
HIDE Contractor PDF:
https://spi.supply/content/hide/HIDE-Contractor-Installation-Advice.pdf
HIDE Technical PDF:
https://spi.supply/content/hide/HAC-TEC-2025-USA-v2.pdf
HIDE Warranty PDF:
https://spi.supply/content/hide/Homeowners-Manual-Warranty.pdf
