HIDE 6" Access Cover Kit
HIDE 6" Access Cover Kit

HIDE 6" Access Cover Kit

HIDE
SKU:
HAC6
$210.00

Create a flush, discreet 6-inch service access point with a 316L stainless steel HIDE cover finished in the same tile, stone, paver or turf as the surrounding surface.

  • Blends into the finished surface
  • 316L marine-grade stainless steel
  • Six depths for common surface materials
  • Opens with the supplied HIDE Safety Key
Choose your inlay depth Select the depth that matches your finished surface and installation requirements. Which inlay depth do I need?
Current Stock:
Adding to cart… The item has been added
Confirm before ordering

Is this the right HIDE kit for your project?

Verify the application, opening and finished surface before selecting a depth.

What’s included

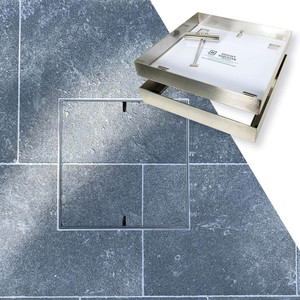

Representative HIDE cover kit with stainless-steel frame and tray, safety key, height adjuster, adhesive and documentation
Representative HIDE kit shown. Exact components vary by cover model and selected depth.
  • 316L stainless steel inlay lid
  • 316L stainless steel edge-protector frame
  • HIDE Safety Key access tool(s)
  • HIDE adhesive, 2 mm height adjuster and documentation

Surface inlay is not included. Safety-key quantity and any concrete-conversion components vary by selected depth; verify the child SKU before fulfillment.

Verify these product details

  1. 1
    ApplicationSmall exterior access and inspection points such as valves, cleanouts, junctions and landscape services; not designed as a drain.
  2. 2
    Required openingClear frame access opening: approximately 4 1/3 inches square.
  3. 3
    Overall outside size6 inches square overall frame.
  4. 4
    Load and use ratingRecommended for pedestrian-only traffic areas; not rated for vehicle traffic. Confirm project-specific load and code requirements.

Confirm the clear opening, frame support and total finished inlay thickness before ordering. Professional installation is recommended. Do not use this access cover as a drain.

Check the depth chart Ask SPI Supply
How HIDE works

A concealed cover in three steps

The stainless-steel system supports your selected surface material while preserving access to the point below.

Finished HIDE inlay cover being lifted with the removable safety key
The removable safety key provides access while allowing the installed cover to remain visually concealed when closed.
  1. 1

    Set the frame

    Install and level the edge-protector frame within the prepared surrounding surface.

  2. 2

    Fit the inlay

    Cut and secure matching tile, stone, paver, decking, turf, or another suitable finish inside the tray.

  3. 3

    Blend and access

    The finished lid sits flush with its surroundings and lifts with the supplied HIDE key when access is needed.

Depth selection chart

Match your finished surface to the correct depth

Measure the finished material, including adhesive or setting bed, then use the chart to select the appropriate inlay depth.

HIDE inlay depth recommendations by surface material and finished thickness
Surface material Material thickness Required depth
Tile / Turf 3/8″ to 1/2″ (1 cm) 0.4″ depth
Porcelain 5/8″ to 7/8″ (2 cm) 0.8″ depth
Travertine Paver 1″ to 1 1/4″ (3 cm) 1.2″ depth
Stone / Concrete 1 3/8″ to 1 5/8″ (4 cm) 1.6″ depth*
Brick / Stone / Concrete 1 3/4″ to 2″ (5 cm) 2.0″ depth*
Brick / Thicker Stone 2 1/4″ to 2 1/2″ (6 cm) 2.5″ depth*

* Deeper kits may include concrete-conversion components. Available depths and components vary by cover type and size; choose only from the options shown for this product.

Between sizes or planning a concrete installation? We can help verify the cover size, finished material thickness and complete kit before you order.
Ask SPI Supply
Project inspiration

Designed to disappear into the finished surface

Explore installed applications, finish ideas, technical drawings and kit details from this product’s gallery.

Finished HIDE cover aligned with surrounding stone paving
Finished installation
Before and after comparison replacing a visible drain grate with a stone-inlay HIDE cover
Stone-finish transformation
Before and after comparison replacing a green drain grate with a paver-inlay HIDE cover
Paver-finish transformation
Installation and support

Plan the installation before you order

Confirm the opening, finished material thickness and installation requirements with your contractor. Use the documents below for product-specific planning.

Manufacturer video

Watch the HIDE installation overview

Review the manufacturer’s installation process before selecting a kit or beginning site preparation. Always follow the instructions supplied for the exact product and depth selected.

Watch directly on Vimeo
Frequently asked questions

Questions before installation

Still unsure? SPI Supply can help verify the kit before you order.

Ask a product question
How do I choose the correct inlay depth?

Measure the total finished thickness of the material that will sit inside the cover, including the adhesive or setting layer. Match that measurement to the depth chart above, then choose from the options available on this product.

Can a HIDE cover be installed in an existing deck?

Many HIDE covers can be used for retrofit projects. The opening dimensions, clearance, finished surface thickness and site conditions must be checked before ordering or altering the deck.

Should a professional install the cover?

Professional installation is strongly recommended. Have a licensed, suitably experienced contractor read and follow the applicable installation instructions before work begins; incorrect installation can affect warranty coverage.

What is included with a HIDE kit?

Kit contents vary by cover model and selected depth. Review the product-specific “What’s included” list above, the product description and the applicable technical documents before ordering.

How should the cover be cleaned and maintained?

Remove accumulated debris and clean the exposed surface appropriately for the surrounding finish. Do not allow acid or chemical-wash solutions to contact the stainless-steel components, and always store the safety key securely away from children.

Product details & specifications

HIDE HAC6 Access Cover Kit – 6" Square, Inlay-Ready Cover

SKU: HAC6 (parent)  |  MPN: HAC6 (parent)  |  Brand: HIDE

Quick Facts: 6" × 6" cover | 316L marine-grade stainless steel | Inlay depths: 0.4", 0.8", 1.2", 1.6", 2.0", 2.5" | Concrete-compatible at deeper variants | Pedestrian traffic rated
  • Blend your surface material (tile, stone, pavers, turf, etc.) into access points with a flush, premium finish.
  • 316L stainless steel frame and tray for durability in wet or outdoor environments.
  • Depth variants let you match the height of your inlay material exactly; deeper variants include a concrete conversion kit.
  • Includes safety key tool, edge protector, height adjuster, and full installation documentation to ensure a clean professional install.
  • Recommended for pedestrian traffic areas only; not rated for vehicular loads.

Technical Specifications

Key Specs
Cover Size (Outside Frame) 6" × 6" square
Opening (Internal) ~4 1⁄3" square
Material 316 / 316L marine-grade stainless steel
Available Depth Variants 0.4", 0.8", 1.2", 1.6", 2.0", 2.5"
Concrete Compatibility Yes — deeper variants include concrete conversion kit
Warranty 10 years with required maintenance

Overview

The HIDE HAC6 Access Cover Kit is a 6-inch square inlay-ready lid designed to conceal utility access points while maintaining a clean, flush finish with your deck surface. Offered in multiple depth options, with some variants including a concrete-conversion option, it allows for precise matching of inlay material height. Made with marine-grade stainless steel, it’s ideal for pedestrian traffic areas such as patios, landscaping, valves, and junction boxes.

What’s Included

  • Stainless steel frame and inlay tray (you supply inlay material)
  • Edge protector frame to protect surrounding finishes
  • Height adjuster (if needed for flush fit)
  • Concrete conversion kit included for certain deeper depth variants
  • Safety key tool and installation/warranty documentation

Compatibility & Replacements

Designed to suit 6" square access points; works with deck finishes like tile, stone, pavers, turf, and optionally concrete. Replaces older 6" HIDE access cover kits with similar finish/inlay depth options.

Installation & Notes

  • Confirm inlay material thickness and select matching depth variant for flush finish.
  • Deeper depth kits include concrete conversion; others are intended for materials like tile or pavers without concrete base.
  • Stainless steel care required: avoid acid or harsh chemical exposure.
  • Safety key should be removed after install and provided to homeowner.

Installation Instructions

Technical Specifications

Warranty & Care Guide

Shipping & Returns

Ships from the USA. 30-day returns; customer pays return shipping. Please see our Shipping & Returns policy for details.

Additional Information

HIDE Summary:
Create a flush, discreet 6-inch service access point with a 316L stainless steel HIDE cover finished in the same tile, stone, paver or turf as the surrounding surface.
HIDE Fact 1:
Blends into the finished surface
HIDE Fact 2:
316L marine-grade stainless steel
HIDE Fact 3:
Six depths for common surface materials
HIDE Fact 4:
Opens with the supplied HIDE Safety Key
HIDE Application:
Small exterior access and inspection points such as valves, cleanouts, junctions and landscape services; not designed as a drain.
HIDE Opening:
Clear frame access opening: approximately 4 1/3 inches square.
HIDE Outside Size:
6 inches square overall frame.
HIDE Load Rating:
Recommended for pedestrian-only traffic areas; not rated for vehicle traffic. Confirm project-specific load and code requirements.
HIDE Included 1:
316L stainless steel inlay lid
HIDE Included 2:
316L stainless steel edge-protector frame
HIDE Included 3:
HIDE Safety Key access tool(s)
HIDE Included 4:
HIDE adhesive, 2 mm height adjuster and documentation
HIDE Included Note:
Surface inlay is not included. Safety-key quantity and any concrete-conversion components vary by selected depth; verify the child SKU before fulfillment.
HIDE Product Note:
Confirm the clear opening, frame support and total finished inlay thickness before ordering. Professional installation is recommended. Do not use this access cover as a drain.
