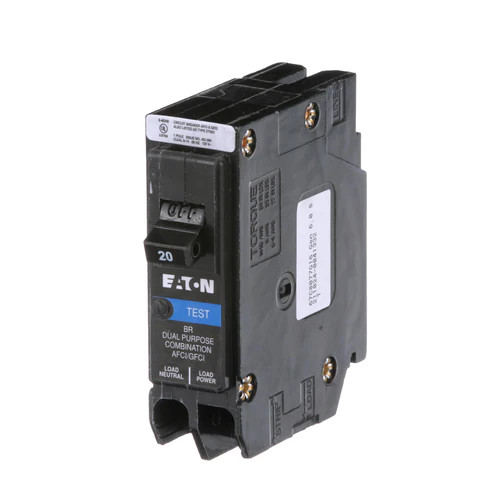

Eaton BRP120DF 20 Amp 1 Pole AFCI/GFCI Dual Function Circuit Breaker
Eaton
$69.95
Write a Review
Eaton
Eaton BRP120DF 20 Amp 1 Pole AFCI/GFCI Dual Function Circuit Breaker
20 A Single-Pole Dual-Function AFCI/GFCI Breaker, 120 VAC
SKU: BRP120DF | MPN: BRP120DF | Brand: Eaton
Quick Facts: 20 A | 120 VAC | 1-Pole Dual Function (AFCI + GFCI) | 10 kAIC interrupt rating | Wire size #14-4 AWG | Plug-On Neutral
- Combination AFCI/GFCI protection: detects both arc faults and ground faults in one device.
- Single-pole configuration for standard 120 V branch circuits.
- Plug-on neutral design for panels that support this feature, simplifying installation.
- 10 kA interrupt rating helps manage short-circuit events safely.
- UL listed and meets Eaton’s dual-function safety standards.
Technical Specifications
| Type / Series | BR Dual-Function (AFCI + GFCI), Plug-On Neutral |
| Amperage | 20 A |
| Voltage Rating | 120 V AC |
| Interrupt Rating (AIC) | 10,000 AIC (10 kAIC) |
| Number of Poles | 1 Pole |
| Wire Size | #14-4 AWG (Copper/Aluminum) |
| Dimensions (L × W × Depth) | 2.9″ × 2.9″ × 0.9″ |
| Weight | ≈ 0.4 lb |
Overview
The Eaton BRP120DF is a 20-amp, single-pole dual-function breaker combining both arc-fault and ground-fault protection in the same device. Designed for use in BR panels that support plug-on neutral breakers, it simplifies meeting both AFCI and GFCI requirements where codes require both. It is ideal for bedrooms, kitchens, or any wet or damp location where enhanced protection is necessary.
What’s Included
- BRP120DF breaker unit
- Installation instructions
Compatibility & Replacements
Works in Eaton BR-series load centers that support plug-on neutral. Serves as a replacement for separate Arc-Fault or Ground-Fault breakers of similar ratings. Use in applications where both AFCI and GFCI protection are required by code.
Installation & Notes
- Panel must be compatible with plug-on neutral breakers before install.
- Wire size must be between #14 and #4 AWG as specified.
- Follow manufacturer torque specs when making connections.
- Periodic testing of protection functions is recommended to ensure safety.
- Installation must be by qualified electrician and comply with local NEC or local codes.
